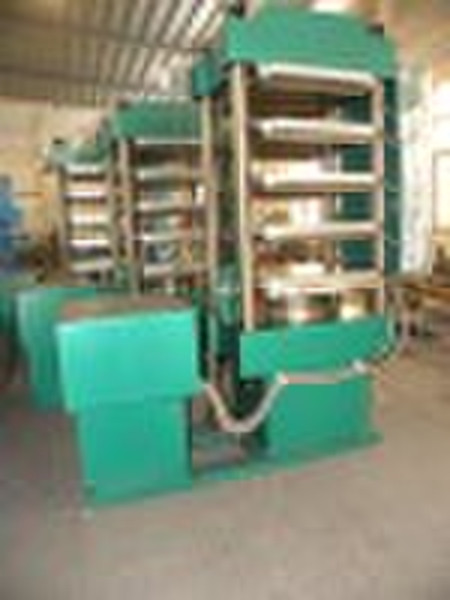

plate vulcanizer

The plate vulcanizer is used to press the rubber tiles and rubber mats, it is good for using the recycling rubber. CE Standards! MainTechnical Data: Model XLB-D400x400 XLB-D500x500 XLB-D600x600 Total Pressure 0.63MN 0.63/1.0MN 1.0MN Max Hydraulic Pressure 16Mpa 16Mpa 16Mpa Heating Platen Size 400x400mm 500x500mm 600x600mm Space of Heating Platen 125mm 125mm 125mm Working layers 2 2 2 Plunger Stroke 250mm 250mm 300mm Total Heating Power 9Kw 10.8Kw 18.9Kw Pump Power 1.5+1.1kw 1.5+1.1kw 3+3kw Dimension 1680x430x1500mm 1780x530x1600mm 2260x630x1800mm Weight 1500kgs 2000kgs 3500kgs Remarks: Heating platen size, space of heating platen, layers, ways of heating could be produced as customer's requirement.
